VOLT IE35Pro Skid Steer - Narrow (37.75" Wide)

Overview

VOLT I35Pro Electric Skid Steer Loader - Narrow (37.75" Wide)

Designed specifically for the demolition industry. The VOLT I35Pro is a cutting-edge electric skid steer loader featuring the industry's first wheel-side motor drive and AUTO HOLD technology for superior stability, reliability, and safety. Designed for compact efficiency, it excels in tight and narrow spaces, effortlessly maneuvering through corridors, aisles, alleys, and low-clearance areas.

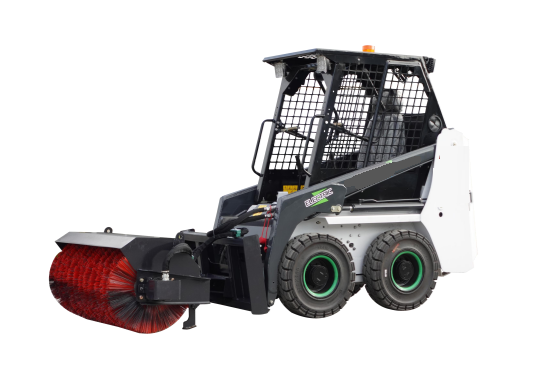

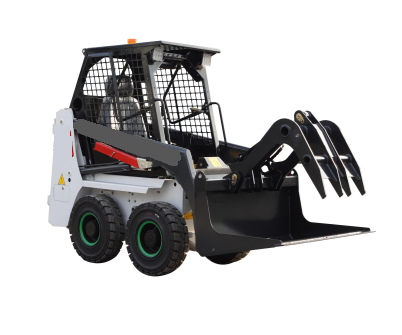

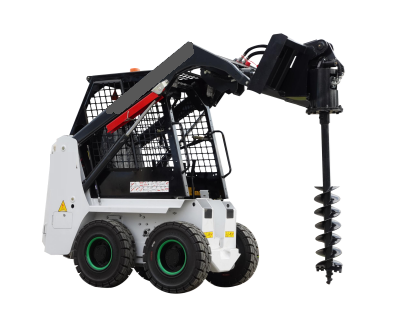

Versatile and powerful, the VOLT I35Pro supports a range of attachments for loading, sweeping, crushing, and more, making it an essential tool for demanding work environments.

Basic Parameters

• Model: S35Pro
• Machine Weight: 3,395 lbs

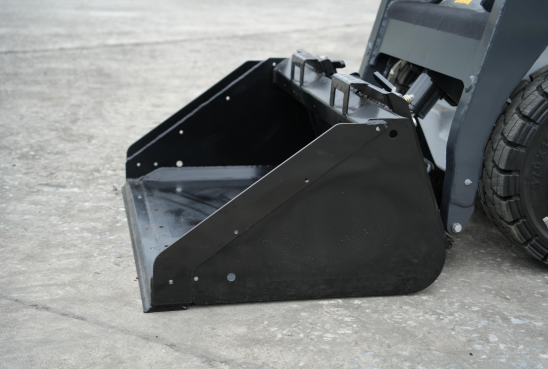

• Bucket Capacity: 0.38 yd³
• Bucket Width: 44.3 in

Technical Specification

Battery

• Type: Lithium Iron Phosphate
• Rated Power: 12 hp (9 kW) @ 3,150 rpm + 4 × 2.7 hp (2 kW) @ 3,500 rpm
• Max Torque/Speed: 51.6 lb-ft @ 1,500 rpm + 4 × 27.1 lb-ft @ 995 rpm
• Battery Capacity: 21.29 kWh
• Rated Operating Load: 772 lbs
• Tipping Load: 1,543 lbs
• System Working Pressure: 4,888 psi
• Flow Rate: 5.42 gal/min (0~+0.13 gal/min)
• Increase Maximum Digging Force: 1,798 lbf
• Tipping Force: 2,023 lbf
• Max Travel Speed (Low Gear): 0–6.5 mph
• Charging from 30% to 80%: 1 hour
• Endurance: 6–8 hours

Drive System

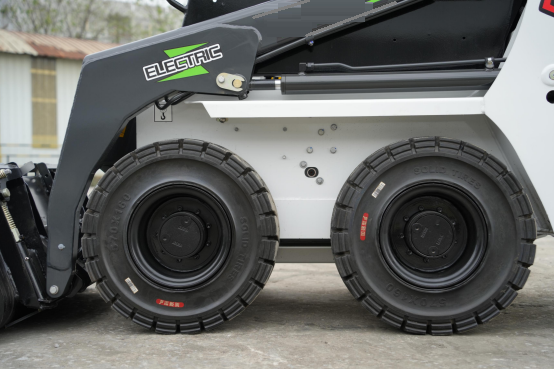

• Wheel-Side Motor Driving
• Wheel-Side Auto Hold

Operating Info

• Overall Operating Height (A): 127.8 in
• Height to Top of Cab (B): 71.5 in
• Dumping Angle at Maximum Height (C): 25°/22°
• Ground Clearance (D): 5.6 in
• Wheelbase (E): 28.4 in
• Overall Length Without Standard Bucket (F): 76.9 in
• Overall Length With Standard Bucket (G): 105.6 in
• Maximum Angle of Flat Ground (H): 22°
• Unloading Height (I): 72.8 in
• Height to Bucket Hinge Pin (J): 94.9 in
• Loading Distance at Max. Unloading Height (K): 21.5 in
• Dumping Angle at Maximum Height (L): 34°
• Rollback of Bucket at Full Height (M): 97°
• Bucket Width (N): 44.3 in
• Radius of Gyration (O): 65 in
• Tread (P): 29.8 in
• Machine Width (Q): 37.8 in
