VOLT Mule 100 - 100kWh Off Grid Site Charging Station

Mobile EV Charger for Construction Sites – Power Where You Need It Most

Rugged, High-Power EV Charging for Remote Job Sites

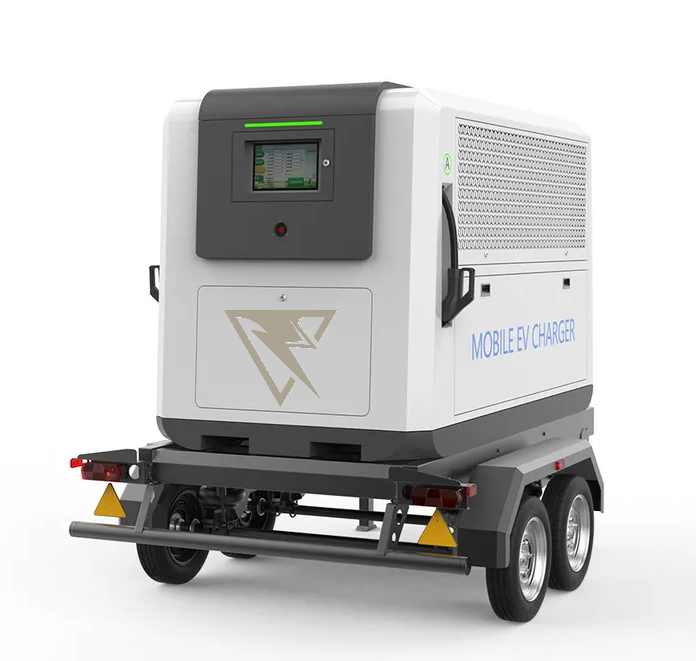

This vehicle-mounted mobile EV charging station is built tough for the job site. Designed to be transported on a small truck or trailer, it brings reliable backup power and high-speed EV charging straight to where the work's happening—especially in remote areas without grid access.

Built for the Field:
Whether you're deep in the woods, out on the highway, or working a big rural build, this system travels easy and sets up fast. Just haul it in, park it, and you're ready to charge on-site.

Level 2 & Level 3 Charging:
With both Level 2 and DC fast charging (up to 100 kW), it can top off machines during lunch breaks or deliver quick opportunity charges between tasks—keeping your electric skid steers, loaders, or mini-excavators moving all day long.

Stay Powered. Stay Productive:
From sunrise to quitting time, this mobile unit helps you stay on schedule without waiting on grid hookups or fuel deliveries. Reliable, portable, and made for hard work.

______________________________________

Product Overview: 100 kWh Mobile EV Charging Station

• Battery Capacity: 100 kWh

• Maximum Charging Power: 90 kW

• Charging Connector: CCS1 / CCS2

• Voltage Range: 200–1000 V DC

• Communication Protocol: OCPP 1.6J

• AC Output Power: 100 kW

• DC Input Current: 250 A

• AC Input Power: 50 kW

• Operating Temperature: -4°F to 149°F

• Weatherproof Rating: IP54 (dust/water-resistant)

• Battery Cycle Life: Over 5,000 cycles

• Thermal Management: Liquid-cooled system

• Display: 13-inch touchscreen HMI

• Dimensions (L × W × H): 76.8" × 43.3" × 59.1"

• Weight: Less than 3,086 lbs

Highlights:

• 100 kW Mobile EV Charger

• 250A Portable Emergency Charging

• Ideal for vans, trucks, and off-grid trailer applications
